Plastic Cup Form Fill Seal Machine

Product Item : 250
Category： Filling Machine
Views：3
Product description：The machine is widely used for PET cup waterfjuice and PS cup yoghurt, such free-flowing liquid or semifluid packaging. from PS/PET/PVC sheet rollfeeding,heating, cup blow forming, filing, sealing, da
INQUIRY

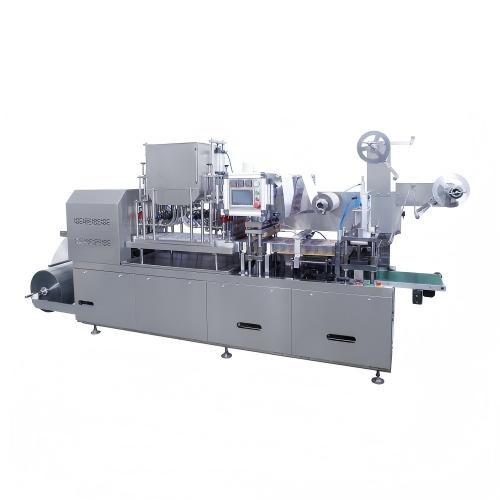

Automatic Plastic Cup Form Fill Seal Machine is a high_-tech equipment, which is R&D by our professional

technical team. It adopts PLC and touch panel, Servo Sheet Feeding, high automation, easy operation, stable

and reliable working. Thismachine is widely used for PET cup waterfjuice and PS cup yoghurt, such free_-flowing

liquid or semifluid packaging,.It is equipped with high automation: from PS/PET/PVC sheet rollfeeding,

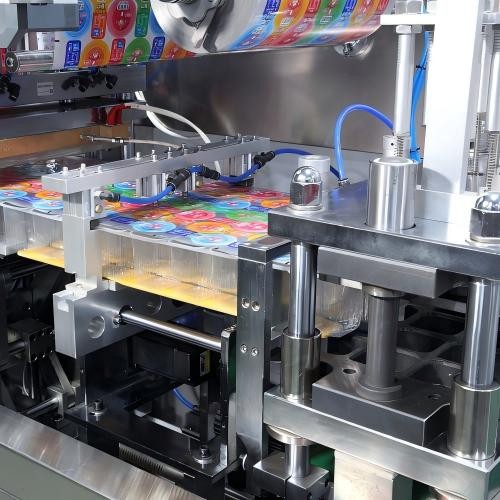

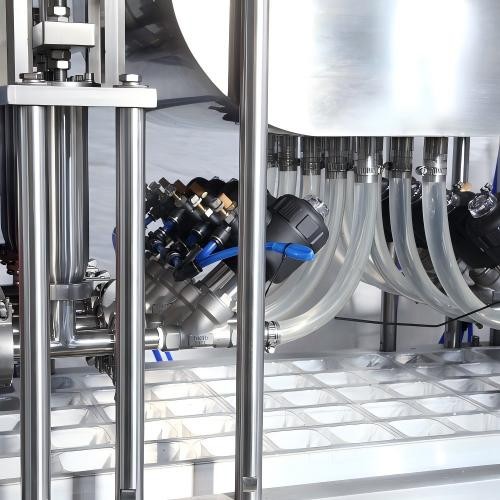

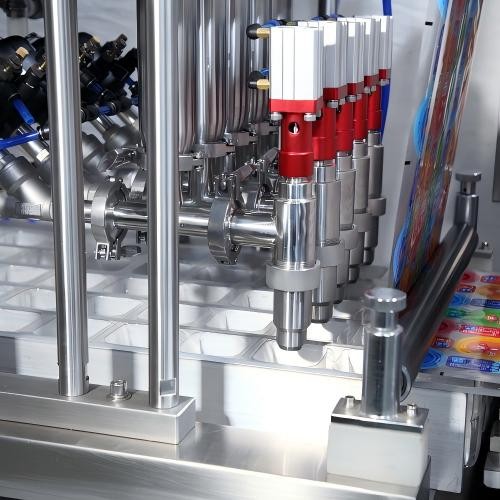

heating, cup blow forming, filing, sealing, date printing(optional), cuting, finished products conveying out,

andinline cartoning machine(optional,. Whole machine could achieve GMP standard, packaging products

safety and healthy.

技术参数TECHNICAL PARAMETERS

Model	SL-100ML	SL-250ML
Running Speed	10-20 cycles/min	10-20 cycles/min
Max.Forming Area	330x180mm	420x180mm
Max.Forming Depth	80mm Special requirements can be customized
Feeding Stroke	40-180mm
Working Air Pressure	0.6-0.8MPa
Air Consumption	>0.4m³/min	>0.5m³/min
Heating Power	~6.2KW	~8.5KW
Feeding Servo Motor Power	0.75KW
Driving Method of Forming Position and Sealing Station	Pneumatic Cylinder
Driving Method of Cutting Station	1.5KWServomotor
Base Material (Rigid Sheet Roll)	PS/PET/PVC:0.15-1.0x350mm	PS/PET/PVC:0.15-1.0x420mm
Upper Sealing Film	Aluminum foil(PTP):0.02-0.035×350mm Plastic Laminated Film 0.05-0.08x350mm	Aluminum foil(PTP):0.02-0.035x420mm Plastic Laminated Film 0.05-0.08x420mm
Power Supply	3 Phase,4-wire,380V/50HZ Special requirements can be customized
Machine Dimension(L W/H)	~4500x780x1900mm	~4500×820x1900mm
Machine Weight	~1600kg	~1900kg
